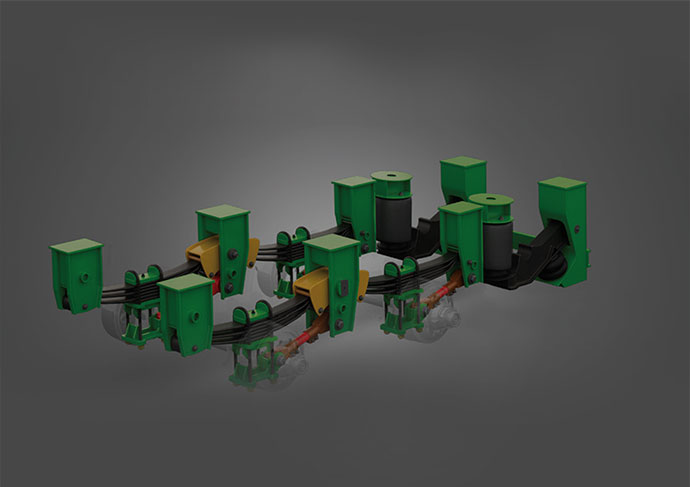

Trailer Mechanical SPD

About JAI Trailer
SPD

A Complete Suspension
System Solutions provider
for Commercial Vehicles.

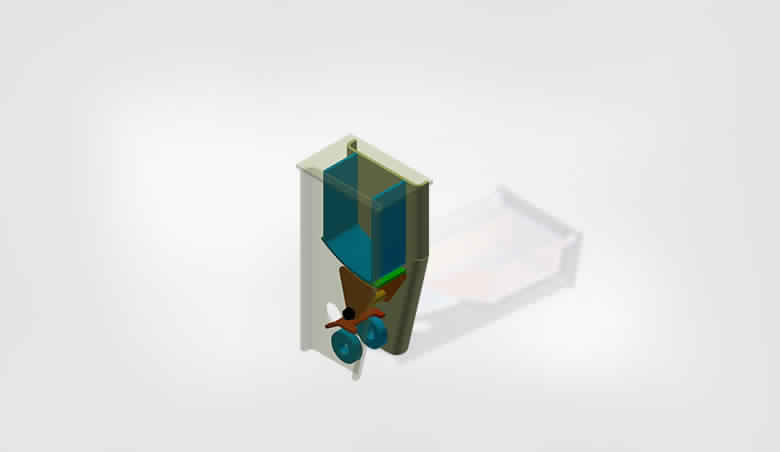

FRONT HANGER BRACKET

Suspension Front hanger made up of 8mm thick high tensile steel with replaceable wear pad.

FEATURES

8 mm sheet thickness
High Tensile Steel
High Strength Welding
Equipped with replaceable wear pads

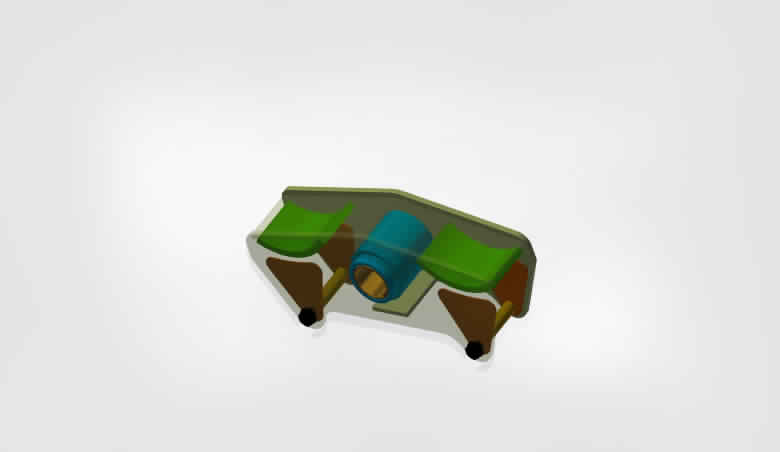

EQUALIZER

Suspension Equalizer made up of 10mm thick high tensile steel & equipped with replaceable wear pad.

FEATURES

10 mm sheet thickness
High Tensile Steel
High Strength Welding
Equalizer equipped with wear pads

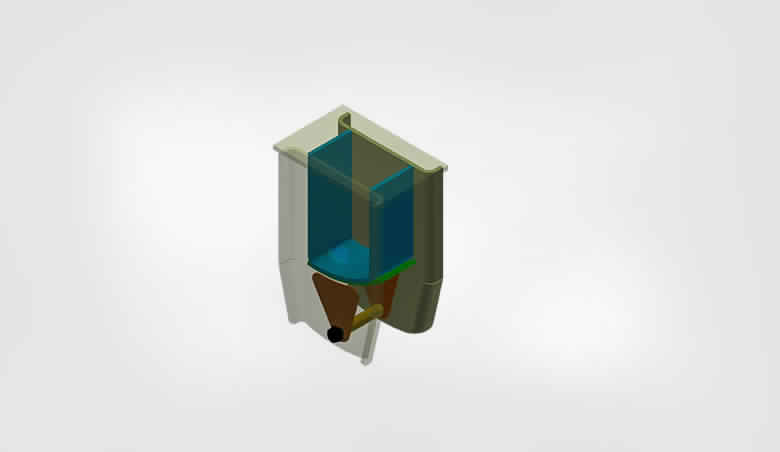

REAR HANGER BRACKET

Suspension Rear hanger made up of 8mm thick high tensile steel with replaceable wear pad.

FEATURES

8 mm sheet thickness
High Tensile Steel
High Strength Welding
Equipped with replaceable wear pads

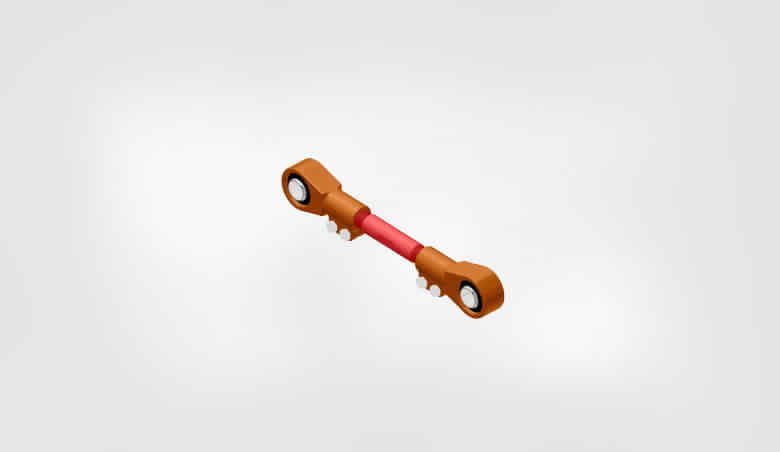

ADJUSTABLE TORQUE ROD

Adjustable Torque Rod available with Axle alignment feature and double locking mechanism as well as steel-rubber bushing

FEATURES

Double Lock Mechanism
Axle Alignment feature ensures minimal Tyre wear
Allows Precise Track Adjustment
Stud Diameter: Φ36 mm

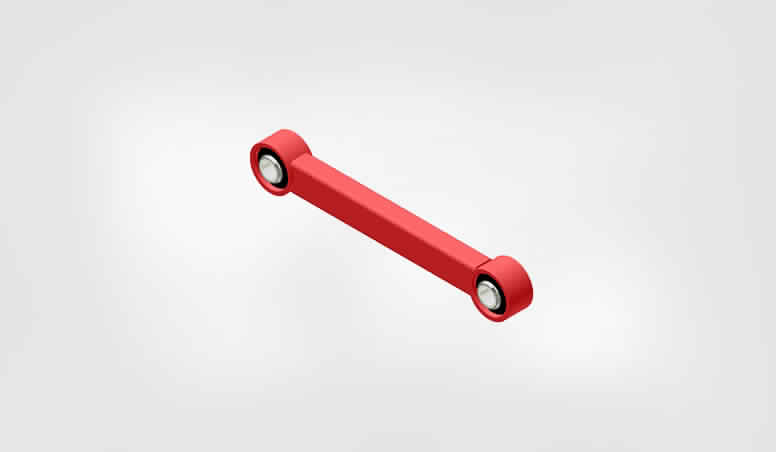

FIXED TORQUE ROD

Fixed Torque Rod is made up of rectangular tube 60mmx40mm size with steel-rubber bushing

FEATURES

Maintains Axle Alignment
Absorbs cornering and leaning forces
Steel rubber bushes for vibration and noise damping
Rod Section: 60 X 40 mm

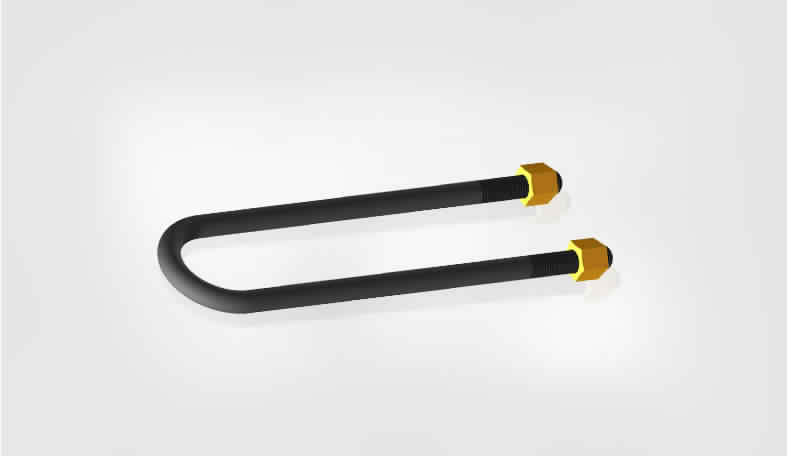

U - Bolt

Trailer suspension equipped with High tensile M24 U-bolt, which is hardened and tempered to provide optimum performance

FEATURES

Hardened and Tempered for optimum
Hardness and enhanced toughness
U Bolt Diameter: Φ24 mm
High Tensile Strength

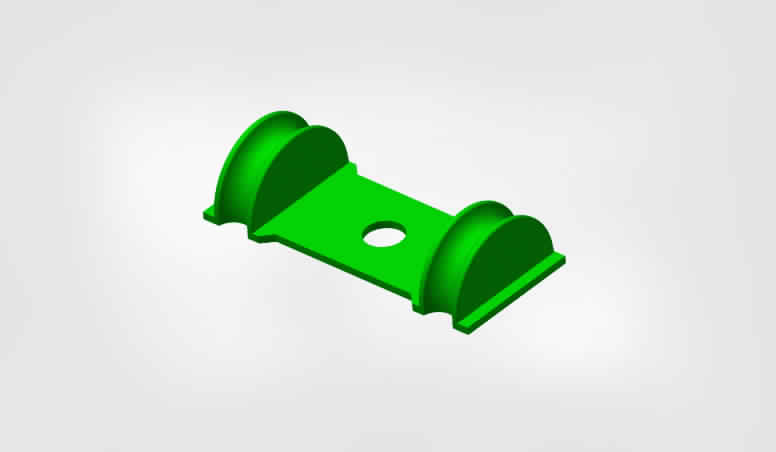

SPRING LOCATING
TOP BRACKET

Fabricated bracket guide U-bolt by locating at spring top

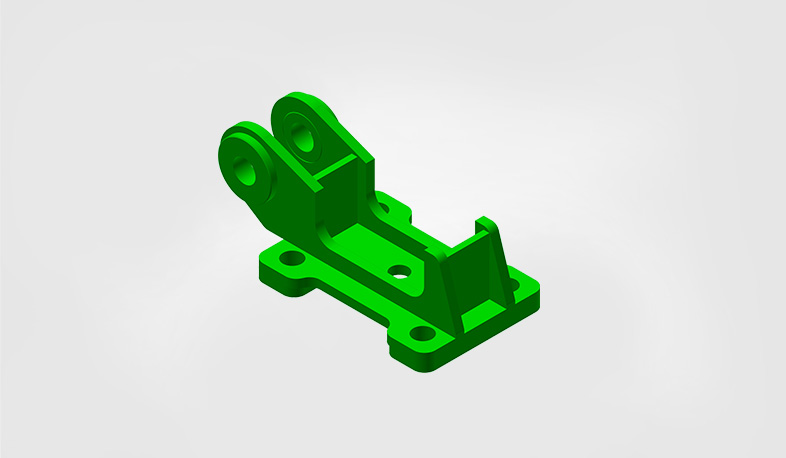

TORQUE ROD
U BOLT MOUNTING
BRACKET

Fabricated bracket which is uses to mount on axle bottom and fasten Torque Rod

FEATURES

Stress Optimized Design
Better Weldability Material

SPRING MOUNTING
BRACKET

Fabricated Bracket which is mounted on axle top for resting leaf spring on it.

FEATURES

Stress Optimized Design
Better Weldability Material
Steel rubber bushes for vibration and noise damping
Rod Section: 60 X 40 mm

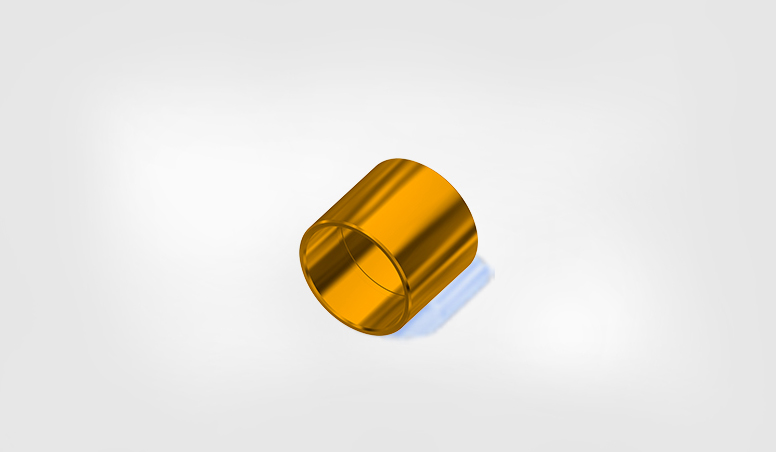

EQUALIZER
BUSH

Trailer Suspension equalizer equipped with Bronze bush which provide robust application

FEATURES

Bronze Bush Material
Long Lifespan
Easily Replaceable

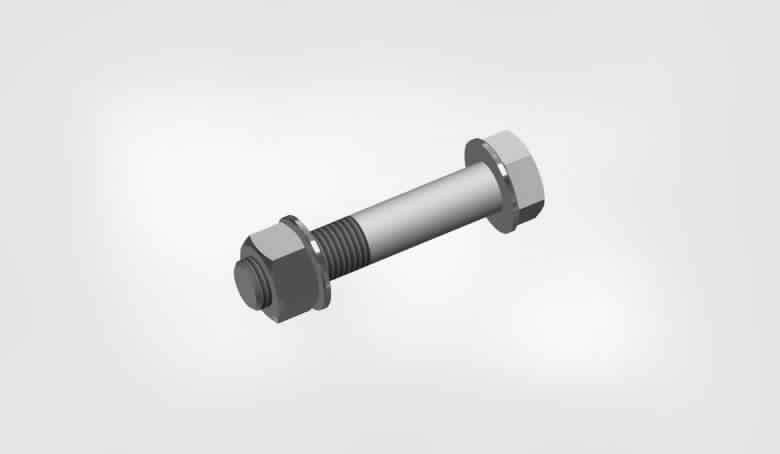

TORQUE
ROD PIN

M30 Fastener of high-grade steel

FEATURES

High Grade Steel

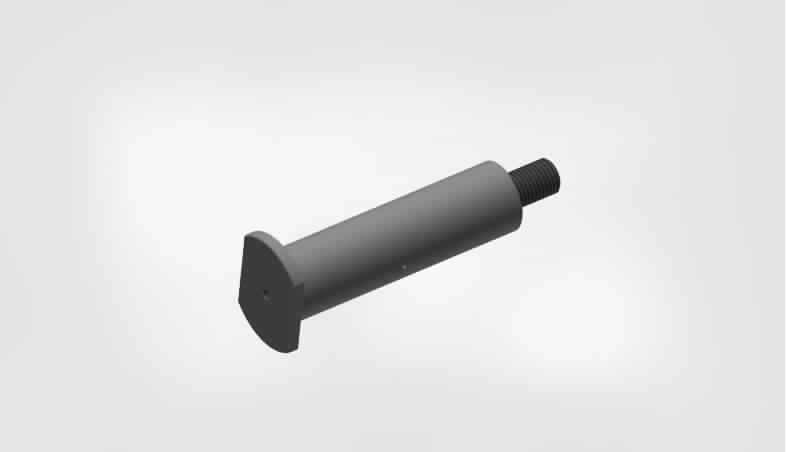

EQUALIZER
CENTER PIN

60mm Dia. high grade steel precisely machined Pin.

FEATURES

High Grade Steel

TORQUE ROD
BUSH

OEM grade Steel-Rubber bushing for Fixed & adjustable torque rod

FEATURES

Steel- Rubber bushing
Absorb road shock
Extend life of structure
